Part Number:  CARDAQ-DV
Price:   $995.00

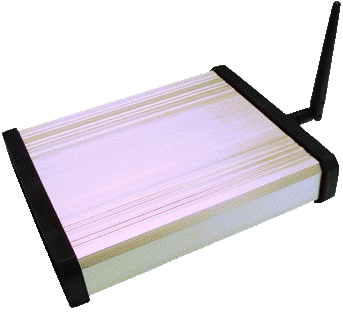

DrewTech CarDAQ-DV

DrewTech CarDAQ-DV rugged vehicle communications tool

© DrewTech

DV for Developers Version

The CarDAQ-DV is a rugged vehicle communications tool intended for use by 3rd party software companies. With the CarDAQ-DV software developers can easily add vehicle diagnostic and communication to their existing application without spending time learning vehicle diagnostics and communications. Examples include fleet management, emissions test stations, diagnostics software, shop management software, and many other automotive applications.

Diagnostic Integration

The CarDAQ-DV has a diagnostic library and API available called JVCI for 3rd party application integrators. This software and hardware will easily allow developers to add vehicle diagnostics to their existing applications without requiring vehicle diagnostics or communication knowledge. The Drew Tech diagnostic library includes DTC's (Diagnostic Trouble Codes) with descriptions, live PID data logging, and enhanced manufacturer-specific diagnostics.

J2534 Communications

Get on the vehicle bus using the only standard for OBD-II communications. Works with 3rd party J2534 software applications.

Remote Diagnostics and Standalone operations

CarDAQ-DV runs it's own operating system, embedded Linux, which allows it to be used as a standalone tool without a PC attached during operation. The Linux installation includes a file and web server which could simplify development of remote diagnostics and management applications. Imagine writing your own C/C++ application to perform an on-road test, then use 802.11 WiFi to wirelessly download a vehicle's data as soon as it re-enters the repair facility.

Specifications

  • Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004) Programming API
  • Built-in 10/100 Ethernet
  • Optional 802.11 wireless
  • No programming voltages (will not reprogram)
  • Bus Protocols
    • CAN/ISO 15765/GMLAN
    • External CAN Channel (Dual Wire)
    • Ford SCP (J1850PWM)
    • GM Class2 (J1850VPW)
    • KWP2000 (ISO9141/14230)
    • Chrysler SCI (J2610)

Applications / Customer Uses

  • Diagnostics using 3rd party applications
  • In-vehicle pass-thru data logging
  • Standalone data logging or monitoring
  • Fleet or public transportation data acquisition
  • OEM Engineering
  • End-of-Line testing
  • Dealer Service Tools
  • 3rd party integrated solutions

Software Supported

Use any PassThru (J2534) compliant application or create your own applications in LabVIEW™, C, or Visual Basic.

Additionally, CarDAQ-DV can host PassThru (J2534) applications on the internal embedded Linux processor. Use your favorite language, including: TCL, Perl, .Net, Java, or C.

Note: Drew Technologies provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. This is responsibility of the buyer.

Ordering Information
View Shopping Cart
Description Part Number Qty 1-9 Qty 10+

DrewTech CarDAQ-DV Hardware, vehicle interface cable, and PassThru (J2534) driver CARDAQ-DV $995.00 contact us Contact us to order
DrewTech 802.11 Wireless upgrade for CarDAQ-DV DV-WIFI $200.00 contact us Contact us to order
JVCI Library and API - single user license for Generic OBD2 JVCI-OBD $100.00 contact us Contact us to order
