Part Number: ULTRASHOCK-50
Price: $799.00

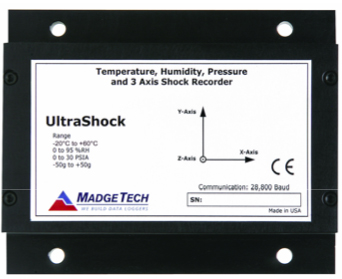

MadgeTech UltraShock
The MadgeTech UltraShock is a stand alone, battery operated, temperature, humidity, pressure and 3-axis shock data recorder.
Continuously sampling at 500Hz, the shock sensors record time and date stamped peak acceleration data at the user-defined
intervals that temperature, humidity and pressure readings are stored. Shock data may be displayed for the three axis as well
as a calculated vector sum to provide overall acceleration/shock information, along with the temperature, humidity and pressure data.
MadgeTech software also provides a summary of statistics for average, minimum and maximum values for all of the sensors. Available in three
ranges (±5g, ±50g, ±100g). 7 Day Battery.
A software and cable kit is required for operation.
| Specifications |
|---|
|
Channels:
|
Shock (3 axes), Temperature,Humidity, Pressure
|
|
Range:
|
See Table Below (shock); -20~+60°C; 0~95%RH; 0~30 PSIA
|
|
Resolution:
|
See Table Below (shock; 12 bits); 0.1°C; 0.5%RH; 0.002 PSIA
|
|
Calibrated Accuracy:
|
See Table Below (shock); ±0.5°C; ±3%RH; ±1%FSR at 25°C
|
|
Memory:
|
23,831/channel
|
|
Sample Rate:
|
2 seconds up to 12 hours
|
|
Required Interface Package:
|
IFC110
|
|
Baud Rate:
|
28,800
|
|
Typical Battery Life:
|
7 days
|
|
Operating Environment:
|
-20~+60°C, 0~95%RH non-condensing
|
|
Material:
|
Anodized aluminum
|
|
Dimensions:
|
3.5" x 4.4" x 1.1" (89mm x 112mm x 28mm)
|
|
CE Approval:
|
Yes
|
|
Weight:
|
15oz.
|
|
UltraShock Ranges
|
|
Range:
|
±5 g
|
±50 g
|
±100 g
|
|
Accuracy:
|
±0.2 g
|
±1 g
|
±2 g
|
|
Resolution:
|
0.01 g
|
0.05 g
|
0.1 g
|
| Ordering Information |
|---|
|
View Shopping Cart
|
| Description |
Part Number |
Qty 1-9 |
Qty 10+ |
|
| |
| Data Logger |
|---|
| MadgeTech Ultrashock Temperature, Humidity, Pressure, and Shock Recorder, -50 to +50G |
ULTRASHOCK-50 |
$799.00 |
contact us |
Contact us to order |
| MadgeTech Ultrashock Temperature, Humidity, Pressure, and Shock Recorder, -5 to +5G |
ULTRASHOCK-5 |
$799.00 |
contact us |
Contact us to order |
| MadgeTech Ultrashock Temperature, Humidity, Pressure, and Shock Recorder, -100 to +100G |
ULTRASHOCK-100 |
$799.00 |
contact us |
Contact us to order |
| |
| Software and Communication Cable (One required) |
|---|
| MadgeTech Software and RS-232 Interface Cable Kit |
IFC110 |
$99.00 |
contact us |
Contact us to order |
| MadgeTech Software and USB Interface Cable Kit |
IFC200 |
$119.00 |
contact us |
Contact us to order |
| |
| Optional Accessories |
|---|
| Extra / replacement 9 Volt Lithium battery, 1200 mAH |
U9VL-J |
$15.00 |
contact us |
Contact us to order |
