Part Number:  OCTTEMP
Price:   $999.00

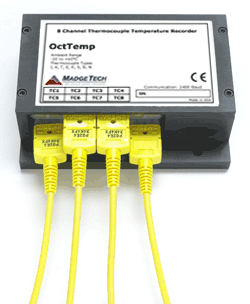

MadgeTech OctTemp

The MadgeTech OctTemp is an 8-channel, battery powered, standalone, thermocouple temperature data logger. It accepts 8 different thermocouple types, J, K, T, E, R, S, B, and N, with no additional programming. The OctTemp is an all-in-one compact, portable, easy to use device that will measure and record up to 14,563 measurements per channel. The storage medium is non-volatile solid state memory, so no data will be lost if the battery becomes discharged.

A MadgeTech software and cable kit is required for operation. The easy-to-use MadgeTech software features enhanced tools like the use of engineering units, digital calibration, and automatic export to MS Excel.

Features

  • Accepts thermocouple types J, K, T, E, R, S, B, N
  • Self contained
  • Automatic cold junction compensation
  • CE compliant

Applications

  • Extreme temperature monitoring
  • Medical and pharmaceutical
  • Process verification and validation
Specifications
Internal Channel Temperature Sensor: Semiconductor
Internal Channel Temperature Resolution: 0.1°C
Internal Channel Calibrated Accuracy: ±0.5°C
Remote Channel Thermocouple Types: J, K, T, E, R, S, B ,N
Thermocouple connection: Female subminiature (SMP)
Remote Channel Range, Resolution & Accuracy: See table below
Cold Junction Compensation: Automatic, based on internal channel
Maximum Thermocouple Resistance:: 1000Ω, <100Ω recommended
Channels: 1 Internal & 8 Remote
Memory: 14,563 readings per channel, for a total of 131,067 readings
Reading Rate: 1 reading every 5 seconds to 1 every 12 hours
Required Interface Package: PC serial or USB (Interface cable required); 2,400 baud
Typical Battery Life: 1 year
Battery Type: 9 Volt lithium or alkaline battery included, user replaceable
Operating Environment: -20~+60°C, 0 to 95% RH, non-condensing
Material: Anodized aluminum
Dimensions: 3.5" x 4.4" x 1.5" (89mm x 112mm x 39mm)
CE Approval: Yes
Weight: 15.4oz.
Range, Resolution, and Accuracy
Thermocouple Range(°C) Resolution Accuracy
J -210 to +760 0.1 °C ±0.5°C
K -270 to +1370 0.1 °C ±0.5°C
T -270 to +400 0.1 °C ±0.5°C
E -270 to +980 0.1 °C ±0.5°C
R -50 to +1760 0.1 °C ±2.0°C
S -50 to +1760 0.1 °C ±2.0°C
B +50 to +1820 0.1 °C ±2.0°C
N -270 to +1300 0.1 °C ±0.5°C
Ordering Information
View Shopping Cart
Description Part Number Qty 1-9 Qty 10+

Data Logger
MadgeTech OctTemp 8 channel thermocouple data logger OCTTEMP $999.00 contact us Contact us to order

Software and Communication Cable (One required)
MadgeTech Software and RS-232 Interface Cable Kit IFC110 $99.00 contact us Contact us to order
MadgeTech Software and USB Interface Cable Kit IFC200 $119.00 contact us Contact us to order

Optional Accessories
Extra / replacement 9 Volt Lithium battery, 1200 mAH U9VL-J $15.00 contact us Contact us to order

Notes
