Part Number: TEMP1000IS
Price: $199.00

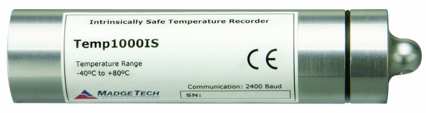

MadgeTech Temp1000IS
The MadgeTech Temp1000IS is an Intrinsically Safe (IS), data logger. It's ideal for use in hazardous or explosive environments and certified Intrinsically Safe for Class I, Division 1, groups A, B, C, D and non-incedive for Class I, Division 2, groups A, B, C, D hazardous enviroments. Aluminum enclosure. A software and cable kit is required for operation.
| Specifications | |
|---|---|
| Sensor: | Internal semiconductor |
| Temperature Range: | -40~+80°C |
| Temperature Resolution: | 0.1°C |
| Calibrated Accuracy: | ±0.5°C |
| Memory: | 32,767 |
| Sampling Rate: | 2 seconds up to 12 hours |
| Required Interface Package: | IFC110 |
| Baud Rate: | 2,400 |
| Typical Battery Life: | 1 year |
| Operating Environment: | -40~+80°C, 0~100%RH |
| Submersible: | Yes |
| Material: | Available in anodized aluminum or 303 stainless steel |
| Dimensions: | 4.3" x 1.0" dia.(110mm x 26mm dia.) |
| Approvals: | CE, IS rated |
| Weight: | 4oz. |
| Ordering Information | ||||
|---|---|---|---|---|
| View Shopping Cart | ||||
| Description | Part Number | Qty 1-9 | Qty 10+ | |
| Data Logger | ||||
| MadgeTech Temperature Recorder | TEMP1000IS | $199.00 | contact us | Contact us to order |
| Software and Communication Cable (One required) | ||||
| MadgeTech Software and RS-232 Interface Cable Kit | IFC110 | $99.00 | contact us | Contact us to order |
| MadgeTech Software and USB Interface Cable Kit | IFC200 | $119.00 | contact us | Contact us to order |
Notes
- NIST calibration certificates available, contact us for more info
